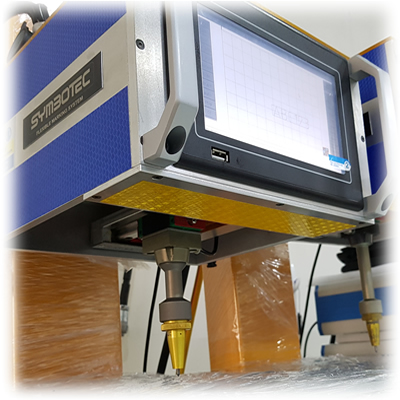

Machine model : X331 |
| Machine type : Pneumatic desktop dot marker |
| Machine head size : 250 x 250 x 180 mm |
| Machine head weight :
7 Kg |
| Marking area : 110 x 80 mm |
| Marking speed : 2-5 char/sec |
| Depth of marking @5 Bar : Mild steel : 0.4 mm / SUS : 0.5 mm / Aluminium : 0.8 mm |
| Operating pressure : 2 - 6 Bar |
| Min. Compressor power : 2.5 HP |
| Connector to controller : P28-20B/P |
| Connector to
Controller : RS232 |
| Connecting cable length : 3 meter
(from machine head to controller) |
| USB / RS232 cable
length : 1.5 meter (from controller to touch screen panel) |
| |
| Adjustable column type : Manual |
| Max. Column opening : 300 mm |
| Adjustable column size : 430 x 320 x 700 mm |
| Column weight : 30 Kg |
|
|
| Controller model : X310 |
| Controller
type : TX6-USB connect direct to touch screen panel |
| Controller size : 325 x 280 x 80 mm |
| Controller weight : 4 Kg |
| Elecrical power : 230 VAC, 50/60 Hz, 200 Watt |
| Connector to machine head : P28-20B/P |
| Connector to external switch : GX16-7B/P |
|
Remark : Connection to PC Not required |
|
|
| Stylus model : T08D2 / T12D3 / T13D3 / T14D3 / T17D4 / T20D4 |
| Stylus type : Air push spring back |
| Frequency : 10 - 20 Hz |
| Stroke length : 15 mm |
